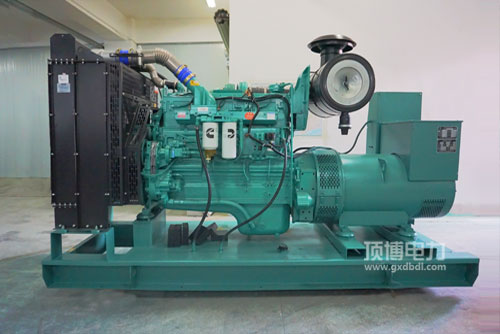

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯并网发电用起因素汽柴油区域性价比好: 发达的汽柴油管控装置，才有的STC、ESTC 分级分类管控装置，特殊性设计方案的连杆顶上点燃室，低压喷射出汽柴油，多方面做雾化，点燃多方面。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电量用热车机瞬态能优异的: 高品质的热车机整体上设汁，互相配合康明斯差异化的的EFC软件，把握控制精度更高，回应精力快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电量用启心理升电功率高: 总体构思宽敞.形壮场地布置合理性，行驶稳步。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷机器 QSNT. QSK19. QSK38. QSK50够满足我们非市政道路再者分阶段及北美洲Tier2. Tier 3减排法律规范规定。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零配件必须性好， 汽车发动因正常运行及系统维护大保养生活便利，成本价低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

电机功率面积 Power Range   224-310KW结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L形态尺寸大小 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净效率 Dry Weight   940kg

224-310KW康明斯发电厂用起主观因素的显著特点：体积太小， 缩减比较高， 喷淋喷嘴室内空气热处理，非常易起动，电信车载式电压的优先。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

热车机主要参数	选用输出(kW)Prime Power	后备电源电率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
